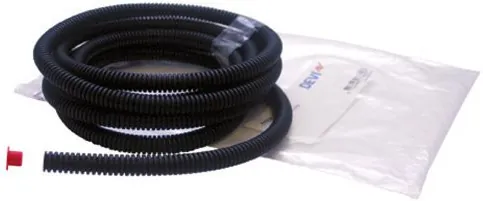

Image: DEVIFloor sensors are run in Flexpipe conduit, centred between two cable runs, so they can be replaced later without lifting the floor. DEVI supplies wire sensors in several lengths, plus room and outdoor sensors for DEVIreg thermostats.
Features and applications
- Flexpipe conduit keeps floor sensors replaceable
- NTC 15 kΩ sensors suit DEVIreg thermostats
- Lengths from 2.5 m to 40 m
- Room and outdoor sensor options
Specifications
| Flexpipe | Inner Ø 6.7 mm, outer Ø 10 mm, 2.5 m, black, with plug |
|---|---|
| Standard floor sensor | NTC 15 kΩ @ 25 °C, 3 m |
Options and product codes
| Product code | Name | Description |
|---|---|---|
| 140F1114 | Flexpipe | Ø 6.7 mm, 2.5 m, black, with plug |
| 140F1091 | Sensor cable 3 m, 15 kΩ, Santoprene | Wire sensor, 2 x 0.75 mm², NTC 15 kΩ at 25 °C, Ø 5 mm, IP67 |
| 19121445 | Sensor cable 40 m, 15 kΩ, Santoprene | Wire sensor, 2 x 0.75 mm², NTC 15 kΩ at 25 °C, Ø 5 mm, IP67 |
| 140F1092 | Outdoor sensor 2.5 m, 15 kΩ, PVC | Wire sensor, NTC 15 kΩ at 25 °C, Ø 8 mm, white PVC sheath, IP67 |
| 140F1098 | Outdoor sensor 10 m, 15 kΩ, PVC | Wire sensor, NTC 15 kΩ at 25 °C, Ø 8 mm, white PVC sheath, IP67 |
| 104F1095 | Room sensor, 426-frame | 85 x 85 x 30 mm, NTC 15 kΩ at 25 °C, IP20 |
| 140F1096 | Outdoor sensor IP44 | 80 x 50 x 35 mm, NTC 15 kΩ at 25 °C, IP44 |
Data from the Heat Zone 2026 product catalogue. Check the current DEVI data sheet for your exact product code before installation. Need the PDF data sheet? Call 1800 519 654 or email info@heatzone.com.au.
